Dual Bridge Load Pins

Dual Bridge Clevis Pins provide two independent strain gage circuits. Dual Bridge transducers may use both bridges for simultaneous control and measurement or use a single bridge for measurement with the other bridge reserved as a spare.

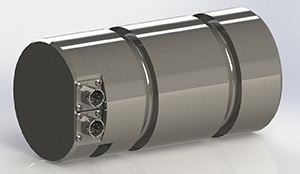

Electrical terminations can be radial or axial using either single or dual connectors (dual shown below). Permanently attached cables can also be provided.

Dual Bridge Wiring Diagram

For documentation, tools, and support, or to discuss your application with one of our engineers, please call 610-825-3310, email info@strainsert.com, or complete a questionnaire using one of the following links:

  1. Clevis Pin (https://www.strainsert.com/questionnaire-clevispin-rt/)
  2. Clevis Pin, Sheave Installation (https://www.strainsert.com/questionnaire-sheavepin-rt/)

Strainsert - for superior internally gaged force transducers.
