Load Pins
The load sensing clevis pin or bolt is a unique strain gage transducer developed by Strainsert. It utilizes the internal strain gage process perfected by Strainsert during the last forty years and used so successfully in Strainsert bolts and flat load cells. The force sensing clevis pin offers percision force measurement by simply replacing existing shear pins, clevis pins, shear axles or many other type of pinned joints used by the Aerospace, Automotive, Military and Marine industries.
Click Here for general product specifications or select from our product list below.
Custom Load Pin Configurator
Strainsert offers a custom Load Pin configurator to allow engineers/designers to input nominal design parameters to determine application feasibility and generate conceptual load pin designs/drawings quickly and effectively.
View Full Specs/CAD Configure Load Pins
Wireless Load Pin Sensor, CW Model
Strainsert’s 900 MHz wireless force sensors incorporate a fully embedded factory programmable radio which eliminates the need for cable runs giving the user greater flexibility and reliability while reducing installation […]
View Full Specs/CAD Configure Load Pins CW Integrated Load Pin/Bolt Force Sensor Technical Manual CW Integrated Load Pin/Bolt Force Sensor Technical Manual
Standard Force Sensing Load Pins/Bolts, CPA/CBA Series
These clevis pins and clevis bolts offer precision force measurement by replacing existing shear pins, clevis bolts, clevis pins, shear axles and many other types of pinned joints.
View Full Specs/CAD Configure Load Pins

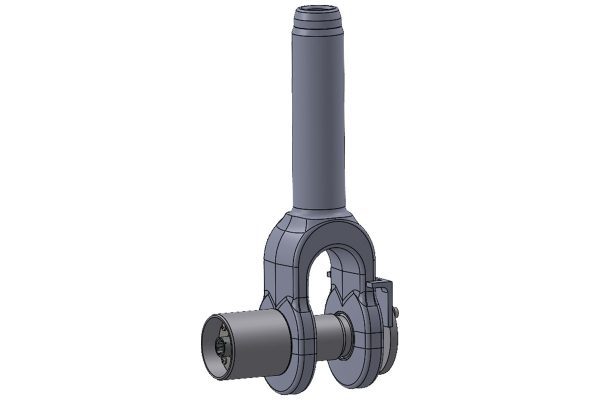

Standard Wire Rope Load Pins, SPA Series
These clevis pins have applications for mooring lines, clam shells, crane cables and bridge support cables, cable dead ends, etc.
View Full Specs/CAD Configure Load Pins

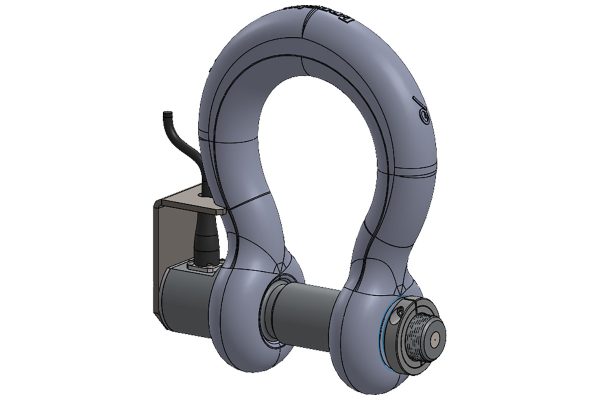

Standard Force Sensing Shackle Load Bolts, RCP Series
Complete strain gage bridge circuit bonded and sealed inside small hole along longitudinal axis of the bolt by exclusive Strainsert process. These Shackle Load Bolts are designed for use with Crosby and Skookum shackles.
View Full Specs/CAD Configure Load Pins

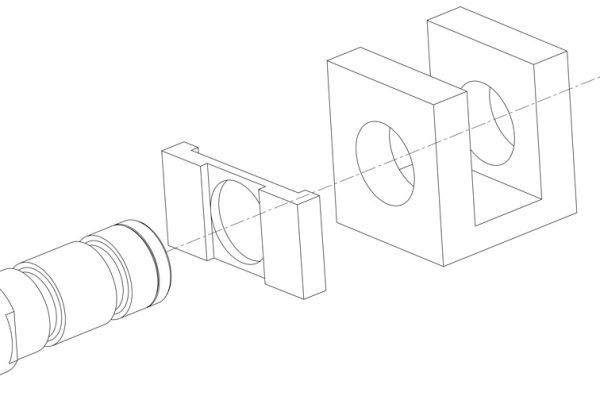

Force Sensing Actuator Load Pins, SPHC Series
These Clevis Load Pin are designed for use in hydraulic cylinders and hydraulic actuator applications. The pins are easily installed in the actuators, and output direct accurate applied hydraulic actuator force.
View Full Specs/CAD Configure Load Pins
Instrumented Load Pins for Sheave Applications
The Instrumented Sheave Pins are often used to measure line tension/force by monitoring reaction load on the pin, transferred through the sheave.
View Full Specs/CAD Configure Load Pins
Load Pin Optional Features
Dual bridge circuits, Built-in signal conditioning, Bi-axial force measurement and Deep sea load pin systems are examples of optional features.
View Full Specs/CAD Configure Load Pins
Custom Load Pin Designs
Dual bridge circuits, Built-in signal conditioning, Bi-axial force measurement and Deep sea load pin systems are examples of optional features.
View Full Specs/CAD Configure Load Pins
Force Sensing Load Pin Accessories
In addition, STRAINSERT also manufactures and offers many load pin and bolt accessories designed for ease of use and installation.
View Full Specs/CAD Configure Load Pins
