PLND4 Single-Channel Portable Load Indicators
PLND4 Single-Channel Portable Load Indicators

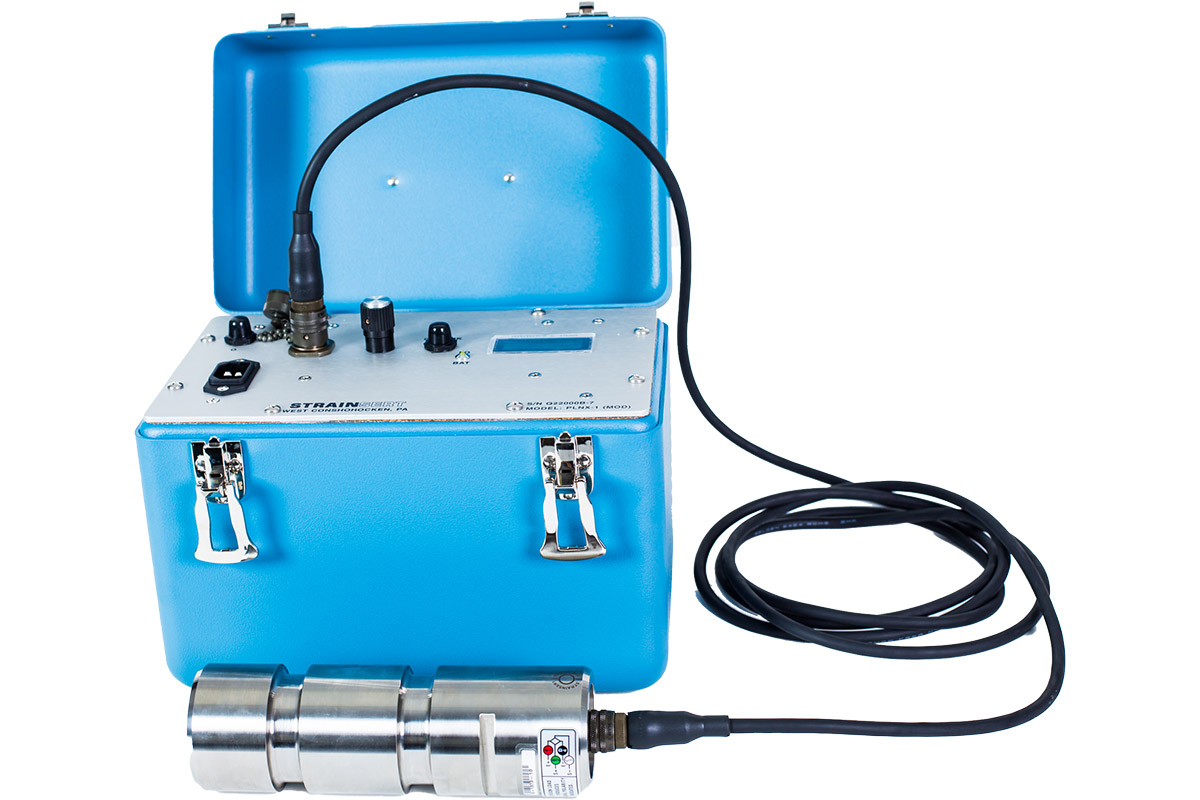

The Model PLND4 Single Channel Load Indicator is a portable battery powered 4 1/2 digit load indicator made for use with any full bridge. Indication is direct. No multipliers are required, thus avoiding ambigious readings. Resolution from 1 pound to 10000 pounds depending on the load capacity of the transducer. Alternate display units are available. Operation is extremely simple. For normal use only two controls are involved: Turn on the power switch, set no load balance or tare reading to zero, and begin reading applied loads.
Features
A calibration check function is included to provide a quick test of the transducer and instrument integrity.
The readout system is fully contained in an aluminum alloy case that is both rugged and durable.
Power is provided by a set of rechargable batteries. Batteries and a recharger, with 110 or 220 Vac power cord, are included within the housing. A detachable power cord is included for recharging.
Battery power allows complete freedom of use and provides 10-15 hours of continous usage depending on transducer resistance. A ratiometric measuring technique prevents battery decay from degrading system accuracy.
When battery voltage has decreased below a functional level, a visual display (flashing “:”) signals that recharging is needed.
Specifications
These portable battery powered load indicators can also be combined with other Strainsert components into a fully comprehensive force measurement system.
| Specifications | |
|---|---|
| Display | 4-1/2 digit |
| Display Accuracy | ±4 count (after 15 min. warm-up) |
| Display Size | 0.52" High LED Display |
| Zero Balance Range | ±20% full scale (FS) |
| Calibration Check | Preset to approximately 80% F.S. |
| Operating Temp | +32° to +122°F 0° to +50°C |
| Storage Temp | -20 to +75°C -4 to +167°F |
| Case Size | 6” (W) x 6” (H) x 9” (L) |
| Weight | 5 lb2 oz |
| Bridge Resistance | 120 Ohm 350 Ohm |
Please contact us for assistance. Strainsert looks forward to assisting you.
