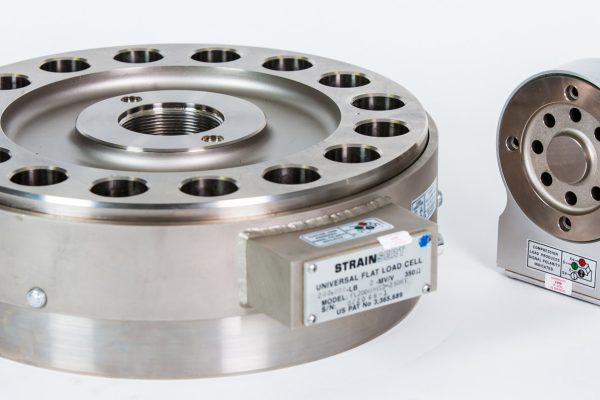

Load Cells
Strainsert has been designing and manufacturing precision Load Cells for nearly half a century. The load cells are instrumented with the same proprietary unique strain gaging technique perfected by Strainsert and used so successfully in Strainsert Bolts, Load Pins, and Tension Links for many research, testing and control applications.
Click Here for general product specifications or select from our product list below.

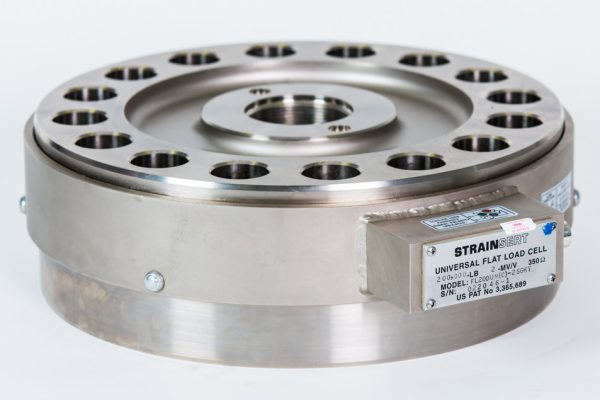

Universal Load Cells
Strainsert standard Universal Load Cells are offered in a wide force measurement range from 250 up to 2 million pounds. They are designed to measure forces in both tension and compression directions.
View Full Specs/CAD Configure Load Pins
T24 Wireless Load Cell System
The T24 wireless load cell system provides the modularity needed to fit custom design requirements. The system includes IP67 rated enclosures and provides the ability to either convert existing wired designs into wireless or to develop new wireless system designs.
View Full Specs/CAD Configure Load Pins Technical Datasheet Technical DatasheetFAQ on Load Cell Calibration
Here are the most common frequently asked questions on load cell calibration for engineers working on research, control, testing and weighing applications or procurement professionals working with engineers looking for […]

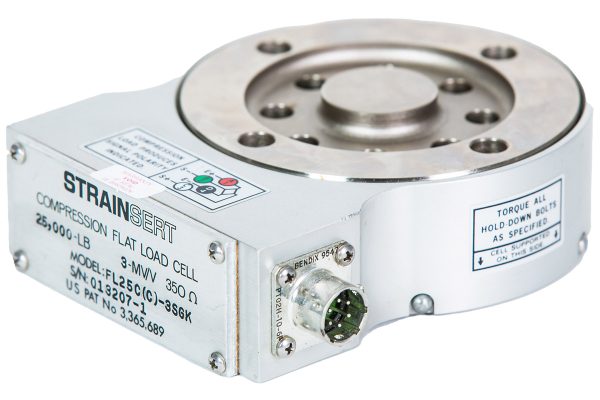

Compression Load Cells
Compression Load Cells are also offered in a wide force measurement range from 250 up to 2.5 million pounds. These load cells are designed to measure forces in the compression direction in many common aerospace, automotive and industrial applications.
View Full Specs/CAD Configure Load Pins

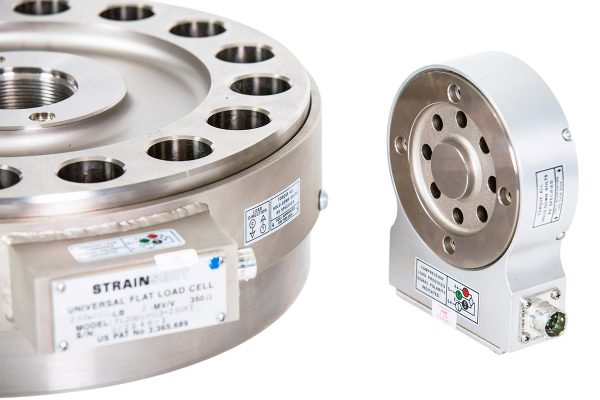

Metric Universal Load Cells
The Metric Universal Load Cells are simply Universal Load Cells designed for tension/compression force measurements, with the difference being they are designed to interface with metric loading rods/hardware and they are calibrated in SI units.
View Full Specs/CAD Configure Load Pins

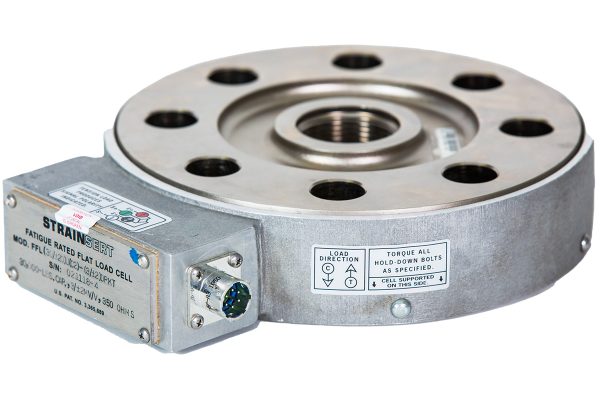

Fatigue Rated Universal Load Cells
The Fatigue Rated Load Cells are similar to the Universal Load Cell Models and are designed for fatigue measurement/control applications in both tension, and or tension/compression directions. The load cells possess very low deflection, high natural frequencies, and a One Billion cycles Fatigue rating!
View Full Specs/CAD Configure Load Pins
Load Cell Technical Information
Flat Load Cell Technical information is listed including mechanical properties (deflections, frequencies, etc) and Extraneous Loading Capabilities
