Wireless Load Pin

Description

The Strainsert Wireless Load Pin is a high-performance wireless telemetry solution where wired installation may be difficult, cost prohibitive, or undesirable.

The system provides long battery life along with high measurement accuracy, resolution, and stability.

Software tools are included for quick and convenient interfacing with device configuration, calibration, datalogging, and recording.

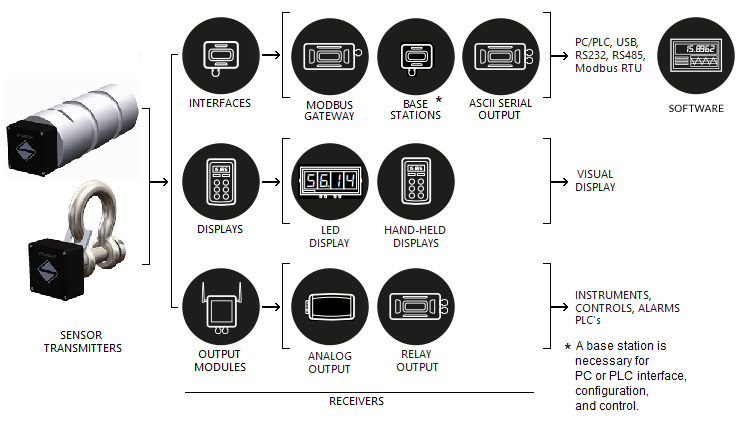

Wireless Load Pin Diagram

Product Features & Benefits

  • License free 2.4GHz telemetry.
  • Range of transmission up to 800 m (2,600 ft).
  • Long battery life.
  • Ideal for single or multiple sensor systems.
  • Load pin or Shackle Bolt with attached wireless transmitter.
  • Transmitter is made to fit either custom or standard clevis pins.
  • Software tools included.

Applications

  • Aerospace
  • Industrial Weighing
  • Automotive
  • Construction
  • Energy

Strainsert Wireless Load Pin

Load Pin and Shackle Bolt examples with attached wireless transmitter

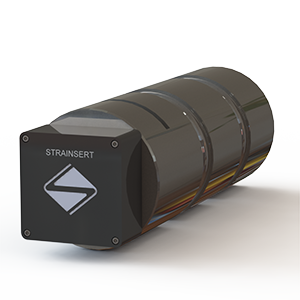

Wireless Load Pin

Wireless Load Pin

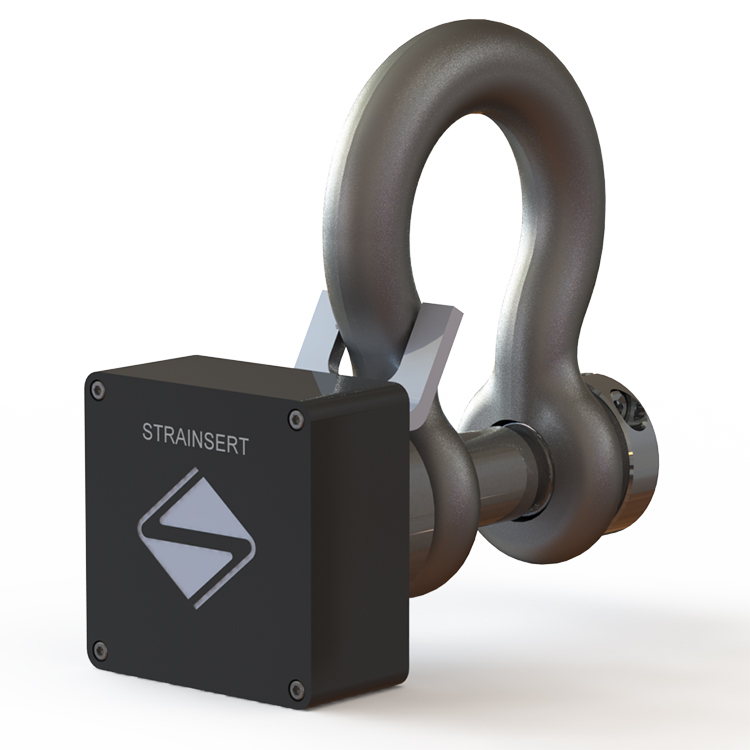

Wireless Shackle Bolt

Wireless Shackle Bolt

T24 Wireless Base Stations

A Base Station is necessary for PC or PLC interface, configuration, and control. It facilitates automated data capture of T24 Transmitter module readings. The T24 Toolkit PC software is included with the wireless system.

T24-ACM
T24-BSi
Wireless range up to 800 m (2,600 ft)
USB powered or external power, 9-32 V
USB, RS232 & RS485 Outputs
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67

T24-ACMi
T24-BSue
Wireless range up to 800 m (2,600 ft)
USB powered
USB Output
80 mm (3.1 in) x 62 mm (2.4 in) x 34 mm (1.3 in)
Environmentally Rated, IP 50


T24-BSu
T24-BSu
Wireless range up to 500 m (1,600 ft)
USB powered
USB Output
76 mm (3.0 in) x 35 mm (1.4 in) x 20 mm (0.8 in)
Environmentally Rated, IP 67

T24-BSd
T24-BSd
Wireless range up to 500 m (1,600 ft)
USB powered
USB Output
58 mm (2.3 in) x 20.5 mm (0.8 in) x 11 mm (0.4 in).

Accessories

T24 Wireless ASCII Serial Output

T24-ACM
T24-SO
Wireless range up to 800 m (2,600 ft)
USB powered or external power, 9-32 V
RS232 & RS485 outputs
Outputs a user defined ASCII
Optional summing for up to 8 transmitters
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67

T24 Wireless Range Extender

T24-ACM
T24-AR
Extends wireless range up to 1,600 m (5,200 ft) or to pass signal around obstructions
Internal battery (2 D Cells) or external power supply (5 -18 VDC). If internal batteries are fitted when external power is applied, the batteries will be utilized if external power is lost.
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67


T24 Wireless Modbus Gateway

T24-ACM
T24 – GW1
Wireless range up to 800 m (2,600 ft)
Serial data for up to 100 transmitter modules
Modbus RTU or ASCII protocol
External power, 9-32 VDC, 100 mA (typical)
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67

T24 Wireless Relay Output

T24-ACM
T24-RM1
Wireless range up to 800 m (2,600 ft)
Accepts up to 16 inputs from T24 wireless transmitters and triggers a range of selectable output actions.
2 x 240 VAC, 5A relay modules for control and alarms
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67


T24 Wireless Receiver with Analog Output

T24-ACM
T24 – AO1i
Wireless range up to 800 m (2,600 ft)
Analog output of 0-10 V, 0-5 V, 4-20 mA, 0-20 mA, ±10 V, ±5 V
Output may be measured by an analog input instrument
External power, 9-32 VDC, 100 mA (typical)
164 mm (6.5 in) x 84 mm (3.3 in) x 57 mm (2.2 in)
Environmentally Rated, IP 67

T24 Wireless Handheld Receivers

Handheld receivers provide a convenient way to connect to T24 transmitters in a rugged IP67 rated enclosure. They can automatically ‘power on’ and ‘power off’ T24 transmitters. Power is provided by 2 AA batteries that can last up to 40 hours of use. Wireless range up to 800 m (2,600 ft).

T24 – HS
T24 – HS
Portable display for single wireless transmitter
The T24 – HS provides a point to point connection to a single transmitter along with two key operation offering tare functionality.

T24 – HRT24 – HA
T24 – HR & HA
Portable display for multiple wireless transmitters
The T24 – HR is a roaming handheld which allows the operator to individually cycle the display between all available transmitter modules.
The T24 – HA receives up to 12 wireless transmitters and provides either a summed total from all selected transmitters or can individually cycle the display for each of the selected transmitters.


T24 Wireless Large LED Display

T24-LD1
T24 – LD1
Wireless range up to 800 m (2,600 ft)
Large screen with 4-Digit, 100 mm (4”) LED Display
Display individual T24 transmitter values or the summed value of up to 8 modules
External power, 10-30 VDC. Current, 3.5 A (typical)
435 mm (17.1 in) x 195 mm (7.7 in) x 77 mm (3.0 in)
Environmentally Rated, IP 65

Contact Strainsert Engineering for system design assistance. Design options may include standard and/or custom components, systems integration, and software development.
