Transducer Receptacles & Connectors
Transducer Receptacles & Connectors

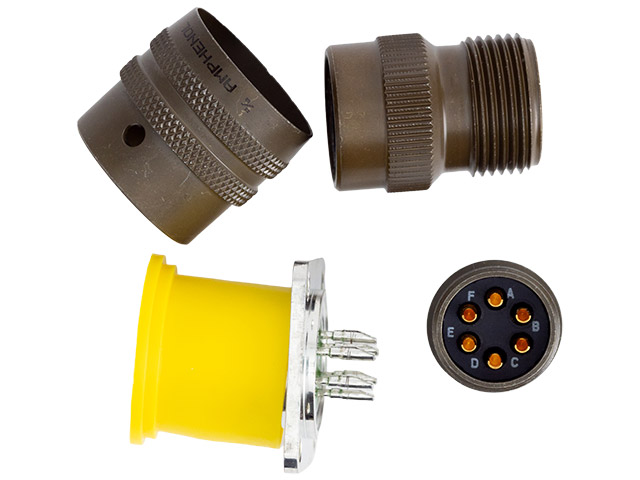

Strainsert’s transducer mating connectors come in various configurations including four, six and eight pin connectors with strain relief.
The transducer receptacles and connectors are offered in different types, number of pins, contact gages and temperature ranges. See the specification table below for more detailed information.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
Full Specs
Transducer Receptacles
| Item # | Type | Number of Pins | Temperature Range | Contact Gage | MIL-STD |
|---|---|---|---|---|---|
| PT1H-8-4P | Solder Mount Receptacle, Male | 4 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT1H-10-6P | Solder Mount Receptacle, Male | 6 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT1H-12-8P | Solder Mount Receptacle, Male | 8 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT02A-8-4P | Gen. Purpose Flange Mount Recp., Male | 4 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT02H-12-8P | Gen. Purpose Flange Mount Recp., Male | 8 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT02H-8-4P | Flange Mnt. Receptacle, Male | 4 | -55 to +257 ºF | 20 | MIL-C-26482G |
| PT02H-10-6P | Flange Mnt. Receptacle, Male | 6 | -55 to +257 ºF | 20 | MIL-C-26482G |
| DR-4S-4H | Solder Mount Receptacle, Male | 4 | -60 to +500 ºF | 30 | MIL-C-22557 |
Mating Connector/Plugs
| Item # | Description | Manufacturer Part Number | Type | Number of Pins | Temperature Range | Contact Gage |
|---|---|---|---|---|---|---|
| Bx8S | 8 PIN Mating Connector | PT06A-12-8S | Straight Plug, Female | 8 | -55 to +257 ºF | 20 |
| Bx6S | 6 PIN Mating Connector | PT06A-10-6S | Straight Plug, Female | 6 | -55 to +257 ºF | 20 |
| Bx4S | 4 PIN Mating Connector | PTO6A-8-4S | Straight Plug, Female | 4 | -55 to +257 ºF | 20 |
| Bx6P | Straight Plug, Male | PT06A-10-6P | Straight Plug, Male | 6 | -55 to +257 ºF | 20 |
| Bx4P | Straight Plug, Male | PT06A-8-4P | Straight Plug, Male | 4 | -55 to +257 ºF | 20 |
| DP-4S-1 | Straight Plug, Female | DP-4S-1 | Straight Plug, Female | 4 | -60 to +500 ºF | 30 |
| PT01A-10-6P(SR) | Cable Connecting Plug, Male | PT01A-10-6P(SR) | Cable Connecting Plug, Male | 6 | -55 to +257 ºF | 20 |
| PT01A-10-6S(SR) | Cable Connecting Plug, Female | PT01A-10-6S(SR) | Cable Connecting Plug, Female | 6 | -55 to +257 ºF | 20 |
