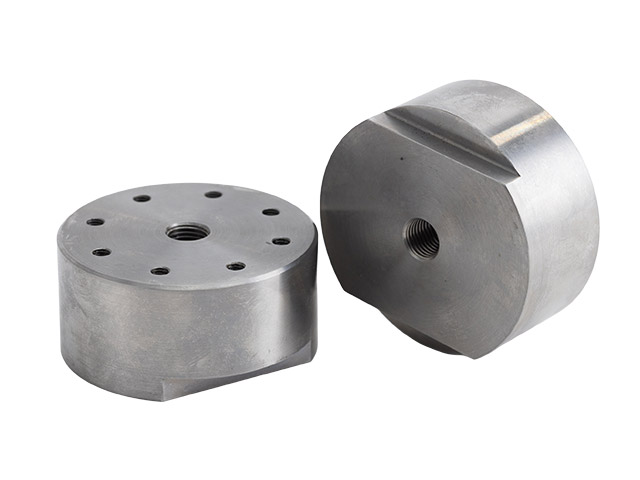

Load cell mounting bases are available for interfacing the load cell with various loading rods.
They bolt to the load cell and have the identical thread engagement as the load cell, providing a simple loading rod interface.
The load cell bases are available in different dimensions. See the specification table below for more detailed information.
Check out also our Universal Load Cells for product details.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
Full Specs
| Item # | D - Diameter | U - Flats | H - Height | T - Hole | K - Hole | L - Diameter |
|---|---|---|---|---|---|---|
| BFL2.5UT | 2-5/8 in | 2 in | 1-1/4 in | 3/8-16UNC-2B | #10-32UNF-2B, 9/16” Deep | 1-15/16 in |
| BFL5UT | 2-5/8 in | 2 in | 1-1/4 in | 7/16-20UNF-2B | #10-32UNF-2B, 9/16” Deep | 1-15/16 in |
| BFL7.5UT | 2-5/8 in | 2 in | 1-1/4 in | 7/16-20UNF-2B | #10-32UNF-2B, 9/16” Deep | 1-15/16 in |
| BFL4.5UT | 3-3/8 in | 3 in | 1-1/4 in | 7/16-20UNF-2B | 1/4-28UNF-2B, 9/16” Deep | 2-7/16 in |
| BFL10UT | 3-3/8 in | 3 in | 1-1/4 in | 5/8-18UNF-2B | 1/4-28UNF-2B, 9/16” Deep | 2-7/16 in |
| BFL25UT | 5-1/8 in | 4-1/2 in | 1-3/4 in | 1-14UNF-2B | 3/8-24UNF-2B, 7/8” Deep | 3-3/4 in |
| BFL35UT | 6-1/8 in | 5-1/2 in | 1-3/4 in | 1-1/4-12UNF-2B | 7/16-20UNF-2B, 7/8” Deep | 4-1/2 in |
| BFL50U(C2)T | 7-1/4 in | 0 in | 2 in | 1-1/2-12N-2B | 1/2-20UNF-2B, 7/8” Deep | 5-1/4 in |
| BFL75UT | 8-1/2 in | 0 in | 2-1/2 in | 1-3/4-12N-2B | 3/4-16UNF-2B, 7/8” Deep | 6-1/2 in |
| BFL100UT | 9-1/2 in | 0 in | 3 in | 2-12UN-2B | 3/4-16UNF-2B, 7/8” Deep | 7-1/4 in |
