Load Cell Buttons
Load Cell Buttons

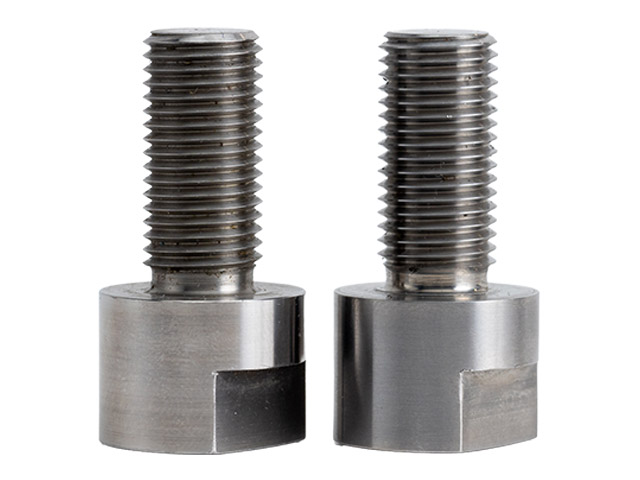

Load Buttons are available for compression loading applications with Universal and Fatigue Rated Load Cells.
The buttons are designed with a radius on the contact surface to accommodate small angular misalignments of the applied load with respect to the load cell. See the specification table below for more detailed information.
Check out also our Universal Load Cells for product details.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
Full Specs
| Item # | A - Height | B - Height | H - Height | R - Radius | r - Radius | U - Width | T - Thread Size |
|---|---|---|---|---|---|---|---|
| FL05UB | 3/4 in | 1/4 in | 1 in | 0.750 in | 0.005 in | 7/16 in | 1/4-20UNC-2A |
| FL1UB | 1/4 in | 1/4 in | 1/2 in | 0.750 in | 0.005 in | 7/16 in | 5/16-18UNF-2A |
| FL2.5UB | 3/4 in | 1/4 in | 1 in | 0.750 in | 0.005 in | 7/16 in | 3/8-16UNF-2A |
| FL5UB | 15/16 in | 9/16 in | 1-1/2 in | 4.000 in | 0.025 in | 9/16 in | 7/16-20UNF-2A |
| FL7.5UB | 15/16 in | 9/16 in | 1-1/2 in | 4.000 in | 0.025 in | 9/16 in | 7/16-20UNF-2A |
| FL10UB | 15/16 in | 3/4 in | 1-11/16 in | 4.000 in | 0.030 in | 13/16 in | 5/8-18UNF-2A |
| FL25UB | 1-7/16 in | 7/16 in | 1-7/8 in | 5.000 in | 0.030 in | 1-3/8 in | 1-14UNF-2A |
| FL35UB | 1-9/16 in | 7/16 in | 2 in | 6.000 in | 0.060 in | 1-5/8 in | 1-1/4-12NF-2A |
| FL50UB | 1-11/16 in | 11/16 in | 2-3/8 in | 10.000 in | 0.060 in | 1-3/4 in | 1-1/2-12NF-2A |
| FL75UB | 2-5/16 in | 7/8 in | 3-3/16 in | 12.000 in | 0.060 in | 2-1/4 in | 1-3/4-12NF-2A |
| FL100UB | 2-11/16 in | 2-1/2 in | 5-3/16 in | 12.000 in | 0.050 in | 2-5/8 in | 2-12UN-2A |
