Clevis Pin Bobbins
Clevis Pin Bobbins

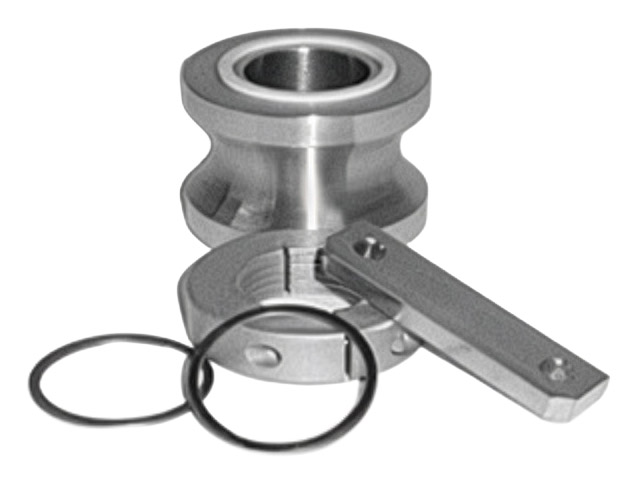

Load pin bobbins are used to position and distribute the force on the center load bearing section of the pin.
They are commonly used with rope and cable installations. See the specification table below for more detailed information.
See also Series Force Sensing Shackle Bolts for product details.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
Full Specs
| Item # | Load Capacity | A - Diameter | D - Diameter | E - Height | J - Length | K - Diameter |
|---|---|---|---|---|---|---|
| SCP-0.437-S | 2,000 lb | 0.437 in | N/A | N/A | N/A | N/A |
| SCP-0.625-S | 4,000 lb | 0.625 in | N/A | N/A | N/A | N/A |
| SCP-0.750-S | 7,000 lb | 0.750 in | N/A | N/A | N/A | N/A |
| SCP-0.875-S | 9,500 lb | 0.875 in | N/A | N/A | N/A | N/A |
| SCP-1.000-S | 12,000 lb | 1.000 in | N/A | N/A | N/A | N/A |
| SCP-1.125-S | 16000 lb | 1.125 in | 1.987 in | 1.687 in | 1.141 in | 0.750 in |
| SCP-1.250-S | 22000 lb | 1.250 in | 2.313 in | 1.813 in | 1.375 in | 1.000 in |
| SCP-1.375-S | 25000 lb | 1.375 in | 2.625 in | 2.031 in | 1.625 in | 1.125 in |
| SCP-1.500-S | 30,000 lb | 1.500 in | N/A | N/A | N/A | N/A |
| SCP-1.625-S | 32000 lb | 1.625 in | 3.000 in | 2.375 in | 1.875 in | 1.375 in |
| SCP-2.000-S | 50000 lb | 2.000 in | 3.750 in | 2.875 in | 2.313 in | 1.625 in |
| SCP-2.250-S | 65000 lb | 2.250 in | 4.250 in | 3.250 in | 2.563 in | 1.875 in |
| SCP-2.750-S | 100000 lb | 2.750 in | 4.875 in | 4.125 in | 3.188 in | 2.375 in |
| SCP-3.250-S | 150000 lb | 3.250 in | 5.250 in | 5.000 in | 3.500 in | 2.750 in |
| SCP-3.750-S | 180000 lb | 3.750 in | 6.000 in | 5.750 in | 4.125 in | 3.250 in |
| SCP-4.250-S | 220000 lb | 4.250 in | 7.000 in | 6.500 in | 4.625 in | 3.750 in |
