Calibration Resistors

Home > Standard Products > Calibration Resistors

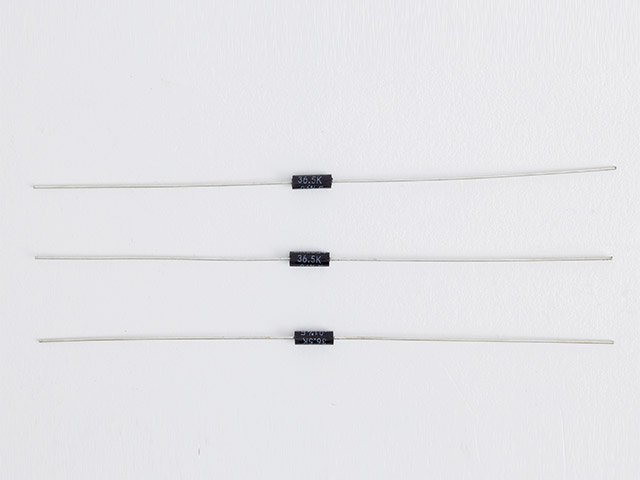

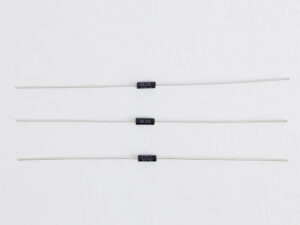

Calibration ResistorsCalibration Resistors

Shunt calibration resistors are used to simulate a resistance change from an applied load, to assist in instrument set-up, or to test the transducer/instrument integrity.

See the specification table below for further detail. Also See the Strainsert calibration page for information on our calibration service.

Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.

Item #Description
Standard Shunt Calibration Resistor110,000 ohm ±0.01% for less than 1.2-mv/V output
Standard Shunt Calibration Resistor73,000 ohm ±0.01% for 1.2 to 1.6-mv/V output
Standard Shunt Calibration Resistor55,000 ohm ±0.01% for 1.6 to 2.4-mv/V output
Standard Shunt Calibration Resistor36,500 ohm ±0.01% for 2.4 to 3.2-mv/V output
Standard Shunt Calibration Resistor27,200 ohm ±0.01% for greater than 3.2-mv/V output
