Threaded Collars

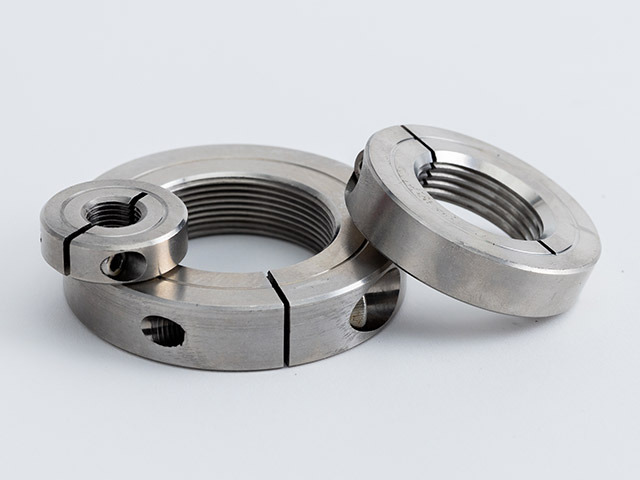

Threaded collars are a recommended approach used on clevis bolt threads to retain the load pin from axial movement.
The collars have an integral fastener design that, when tightened, clamps the collar to the load pin threads.
This allows simple installation and most importantly does not induce an axial force/stress in the load pin, which is common during conventional nut installation. Larger sizes are available upon request and availability. See the specification table below for more detailed information.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
| Item # | Width | OD |
|---|---|---|
| 1/4-28SS | 5/16" Inch | 11/16" Inch |
| 5/16-24SS | 1/4" Inch | 13/16" Inch |
| 3/8-24SS | 5/16" Inch | 1-1/16" Inch |
| 1/2-20SS | 3/8" Inch | 1-1/4" Inch |
| 3/4-16SS | 1/2" Inch | 1-3/4" Inch |
| 7/8-14SS | N/A | N/A |
| 1-14SS | 1/2" Inch | 2" Inch |
| 1-1/4-12SS | 1/2" Inch | 2-1/4" Inch |
| 1-1/2-12SS | 1/2" Inch | 2-1/2" Inch |
| 1-3/4-16SS | 5/8" Inch | 3" Inch |
| 2-12SS | 5/8" Inch | 3-1/4" Inch |
