Keeper Plates
Keeper Plates

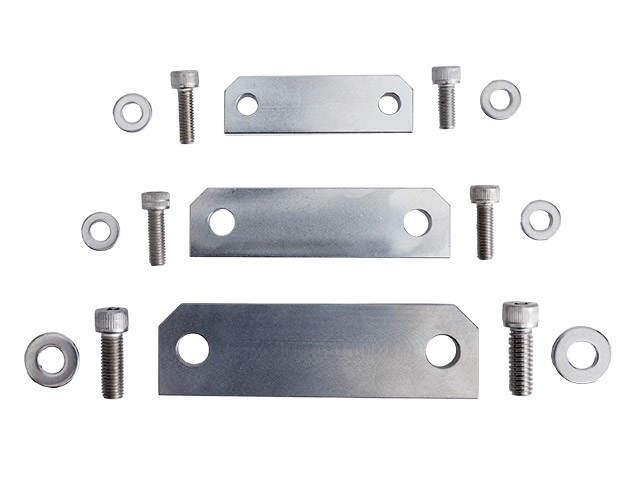

Keeper plates are a common method of properly orienting and retaining the load pin in the assembly to ensure proper alignment with respect to the applied force.
We offer keeper plates in different lengths, heights, thicknesses, retaining hole diameters and distances from the plate base to the hole center and distances between the retaining holes. See the specification table below for more detailed information.
See also the Load Pin Installation Instructions for installation details.
Please contact us online or by phone at 1-610-825-3310 for questions about specific requirements or applications.
Full Specs
| Item # | M - Length of Keeper Plate | N - Height of Keeper Plate | O - Distance from Base of Keeper Plate to Hole Center | Q Thickness of Keeper Plate | R - Distance Between Retaining Holes | S - Retaining Hole Diameter |
|---|---|---|---|---|---|---|
| SPA-12.5-112-1-A | 1.625 in | 0.625 in | 0.375 in | 0.188 in | 1.125 in | 0.203 in |
| SPA-16-112-1-A | 1.750 in | 0.625 in | 0.375 in | 0.250 in | 1.250 in | 0.219 in |
| SPA-25-112-1-A | 2.000 in | 0.625 in | 0.313 in | 0.250 in | 1.500 in | 0.219 in |
| SPA-32-112-1-A | 2.500 in | 0.750 in | 0.375 in | 0.250 in | 1.750 in | 0.219 in |
| SPA-50-112-1-A | 2.750 in | 0.750 in | 0.375 in | 0.250 in | 2.063 in | 0.281 in |
| SPA-65-112-1-A | 3.000 in | 0.750 in | 0.375 in | 0.250 in | 2.250 in | 0.281 in |
| SPA-75-112-1-A | 3.375 in | 1.000 in | 0.500 in | 0.250 in | 2.625 in | 0.344 in |
| SPA-100-112-1-A | 4.000 in | 1.000 in | 0.500 in | 0.375 in | 2.750 in | 0.406 in |
| SPA-125-112-1-A | 4.125 in | 1.250 in | 0.625 in | 0.375 in | 3.125 in | 0.406 in |
| SPA-160-112-1-A | 4.875 in | 1.250 in | 0.625 in | 0.500 in | 3.625 in | 0.406 in |
| SPA-180-112-1-A | 5.000 in | 1.500 in | 0.750 in | 0.500 in | 3.750 in | 0.469 in |
| SPA-200-112-1-A | 5.750 in | 1.750 in | 0.875 in | 0.500 in | 4.250 in | 0.531 in |
| SPA-220-112-1-A | 5.750 in | 1.750 in | 0.875 in | 0.625 in | 4.250 in | 0.531 in |
| SPA-275-112-1-A | 6.000 in | 1.750 in | 0.875 in | 0.625 in | 4.500 in | 0.531 in |
| SPA-300-112-1-A | 6.375 in | 2.000 in | 1.000 in | 0.750 in | 4.875 in | 0.531 in |
| SPA-330-112-1-A | 6.750 in | 2.000 in | 1.000 in | 0.750 in | 5.000 in | 0.531 in |
| SPA-360-112-1-A | 7.000 in | 2.250 in | 1.125 in | 0.750 in | 5.438 in | 0.531 in |
| SPA-400-112-1-A | 7.000 in | 2.250 in | 1.125 in | 0.750 in | 5.750 in | 0.531 in |
| SPA-600-112-1-A | 8.000 in | 2.500 in | 1.250 in | 0.750 in | 6.000 in | 0.781 in |
